Scan-to-BIM is a transformative process that integrates laser scanning technology with digital modeling to enhance accuracy and efficiency in construction and design projects. This article delves into the benefits of Scan-to-BIM, highlighting its impact on various stages of the project construction lifecycle, from initial site analysis to ongoing facility management.
What is Scan-to-BIM or Scan2BIM ?
Scan-to-BIM involves capturing detailed spatial data of a physical structure or site using laser scanners. This data, known as a point cloud, is then processed into a comprehensive digital model using BIM software. The model provides a highly accurate, three-dimensional representation of the site, complete with metadata about the building elements.
Key Benefits of Scan-to-BIM
Enhanced Accuracy
One of the most significant advantages of Scan-to-BIM is its unparalleled accuracy. Traditional methods of measurement and documentation, such as tape measures and manual surveys, are prone to human error. In contrast, laser scanning can capture millions of data points with sub-millimeter precision, ensuring that the resulting digital model is a true reflection of the physical environment. This accuracy is crucial for ensuring that all design and construction decisions are based on reliable data, reducing the risk of errors and rework.
Time Efficiency
Scan-to-BIM dramatically reduces the time required for site measurement and documentation. A laser scan can cover vast areas quickly, with some scanners capable of capturing thousands of square metres of space in a single day. The point cloud data is then processed through cloud computing in a matter of hours, providing a ready-to-use digital model far more quickly than traditional methods. This rapid turnaround allows project teams to move from the surveying phase to the design phase much faster, accelerating the overall project timeline.
Improved Collaboration and Communication
The digital models created through Scan-to-BIM serve as a central repository of information that can be easily accessed and shared by all stakeholders involved in a project. This enhances collaboration and communication, as architects, engineers, contractors, and facility managers can all work from the same accurate, up-to-date information. This shared understanding helps to prevent miscommunication and reduces the likelihood of costly errors and rework. Additionally, the ability to visualize the project in 3D improves stakeholder engagement and decision-making.
Cost Savings
By improving accuracy and efficiency, Scan-to-BIM can lead to significant cost savings throughout a project's lifecycle. Accurate data helps to minimize material waste and avoid errors during construction, while the detailed digital model can be used to plan maintenance and renovations more effectively, reducing long-term operational costs. Furthermore, the ability to detect and address potential issues early in the design phase helps to avoid expensive changes during construction.
Facilitating Renovations and Retrofits
Scan-to-BIM is particularly valuable for renovation and retrofit projects. Older buildings often lack accurate as-built drawings, making it challenging to plan upgrades. Laser scanning provides a precise and detailed understanding of the existing conditions, enabling more effective and accurate planning and execution of renovation work. This is crucial for preserving historical details and ensuring that new work integrates seamlessly with the old. The detailed digital models also allow for better coordination of trades during the renovation process, reducing conflicts and delays.
Enhancing Facility Management
The benefits of Scan-to-BIM extend beyond the construction phase into the operational life of a building. Facility managers can use the digital model for ongoing maintenance, repairs, and inspections. The detailed and accurate representation of the building allows for better planning and execution of maintenance tasks, particularly in hard-to-reach or hazardous areas. This helps to ensure the longevity and safety of the building while reducing maintenance costs. Additionally, the digital model can be used to plan and manage space utilization, energy efficiency improvements, and other operational enhancements.
Scan-to-BIM and Industry 4.0
The integration of Scan-to-BIM within the framework of Industry 4.0 represents a significant leap forward in the construction and facility management sectors. Industry 4.0, characterized by the use of cyber-physical systems, the Internet of Things (IoT), and cloud computing, aims to create smart, interconnected systems that enhance operational efficiency and innovation. Scan-to-BIM fits seamlessly into this vision by providing detailed digital models that can be integrated with IoT sensors and other smart building technologies. These models allow for real-time monitoring and management of building systems, predictive maintenance, and more efficient energy usage. The convergence of Scan-to-BIM and Industry 4.0 technologies enables the creation of digital twins – virtual replicas of physical buildings – that can be used to simulate and optimize performance, leading to smarter, more sustainable buildings.
Digital Twins
A digital twin is a virtual representation of a physical asset, system, or process, updated in real-time to reflect changes and operations of its real-world counterpart. It enables enhanced monitoring, simulation, and optimization of the asset throughout its lifecycle. Digital twins use data from various sources, including IoT sensors, to provide a comprehensive view of the physical asset's performance, conditions, and operations.
Integration of Scan-to-BIM and Digital Twins
The combination of Scan-to-BIM and digital twins fits seamlessly into this vision by providing detailed digital models that can be integrated with IoT sensors and other smart building technologies. These models allow for real-time monitoring and management of building systems, predictive maintenance, and more efficient energy usage. The convergence of Scan-to-BIM and Industry 4.0 technologies enables the creation of digital twins – virtual replicas of physical buildings – that can be used to simulate and optimize performance, leading to smarter, more sustainable buildings.
Enhanced Accuracy and Real-Time Updates:
- Scan-to-BIM provides the foundational data needed for creating a digital twin. The precise and detailed BIM models generated from laser scans ensure that the digital twin accurately reflects the physical asset.
- IoT sensors and other data sources continuously update the digital twin, allowing real-time monitoring and management of the building's performance and conditions.
Improved Decision-Making and Predictive Maintenance:
- Digital twins enable simulation and analysis of various scenarios, helping stakeholders make informed decisions about maintenance, renovations, and operational improvements.
- Predictive maintenance can be planned more effectively, as the digital twin can identify potential issues before they become critical, reducing downtime and maintenance costs.
Lifecycle Management:
- The combination of Scan-to-BIM and digital twins facilitates comprehensive lifecycle management of buildings and infrastructure. From design and construction to operation and maintenance, the digital twin provides a continuous flow of information, ensuring that the asset is managed efficiently throughout its lifecycle.
Enhanced Collaboration:
- The digital twin serves as a single source of truth for all stakeholders, improving collaboration and communication across different phases of the project. Architects, engineers, contractors, and facility managers can access and interact with the same accurate and up-to-date information.
GNSS
The Scan-to-BIM Process
The Scan-to-BIM process can be broken down into several key stages:
Stage 1: Project Planning
Careful planning is crucial for the success of a Scan-to-BIM project. This involves discussing the client's requirements, defining the scope of work, and determining the necessary accuracy and detail levels for the BIM model. A well-defined scope helps prevent misunderstandings and ensures that all parties are aligned on the project goals.
Stage 2: Scanning
During this stage, laser scanners are used to capture detailed spatial data of the physical site. Depending on the project's requirements, different types of scanners, such as mobile or terrestrial lidar, may be used. The resulting point cloud data serves as the foundation for the BIM model.
Stage 3: Data Processing
Once the scanning is complete, the raw point cloud data is processed using specialized software. This involves cleaning the data to remove noise, registering multiple scans to create a cohesive dataset, and performing quality checks to ensure accuracy and completeness. This stage is crucial for ensuring that the final BIM model is reliable and accurate.
Stage 4: Modeling
In the final stage, the processed point cloud data is used to create a detailed BIM model. This involves converting the point cloud into geometric representations of the building elements and integrating additional information, such as materials and dimensions. The resulting BIM model can then be used for various purposes, including design, construction, and facility management.
Future Prospects of Scan-to-BIM
The future of Scan-to-BIM looks promising as technology continues to evolve. Advances in laser scanning technology, such as increased scanning speed and accuracy, will further enhance the capabilities of Scan-to-BIM. Additionally, the integration of Scan-to-BIM with other emerging technologies, such as artificial intelligence and machine learning, holds the potential to automate and optimize many aspects of the construction and facility management processes. For instance, AI algorithms could be used to automatically detect and classify building elements in the point cloud data, streamlining the modeling process.
Conclusion
Scan-to-BIM represents a significant advancement in the construction and design industries. By providing highly accurate, efficient, and comprehensive digital models of physical sites, it enhances every stage of the building lifecycle. From initial site analysis and design to construction, renovation, and ongoing facility management, the benefits of Scan-to-BIM are clear. As technology continues to advance, its adoption is likely to become even more widespread, further transforming the way we build and manage our built environment. The potential for cost savings, improved accuracy, and enhanced collaboration makes Scan-to-BIM an invaluable tool for modern construction and facility management.

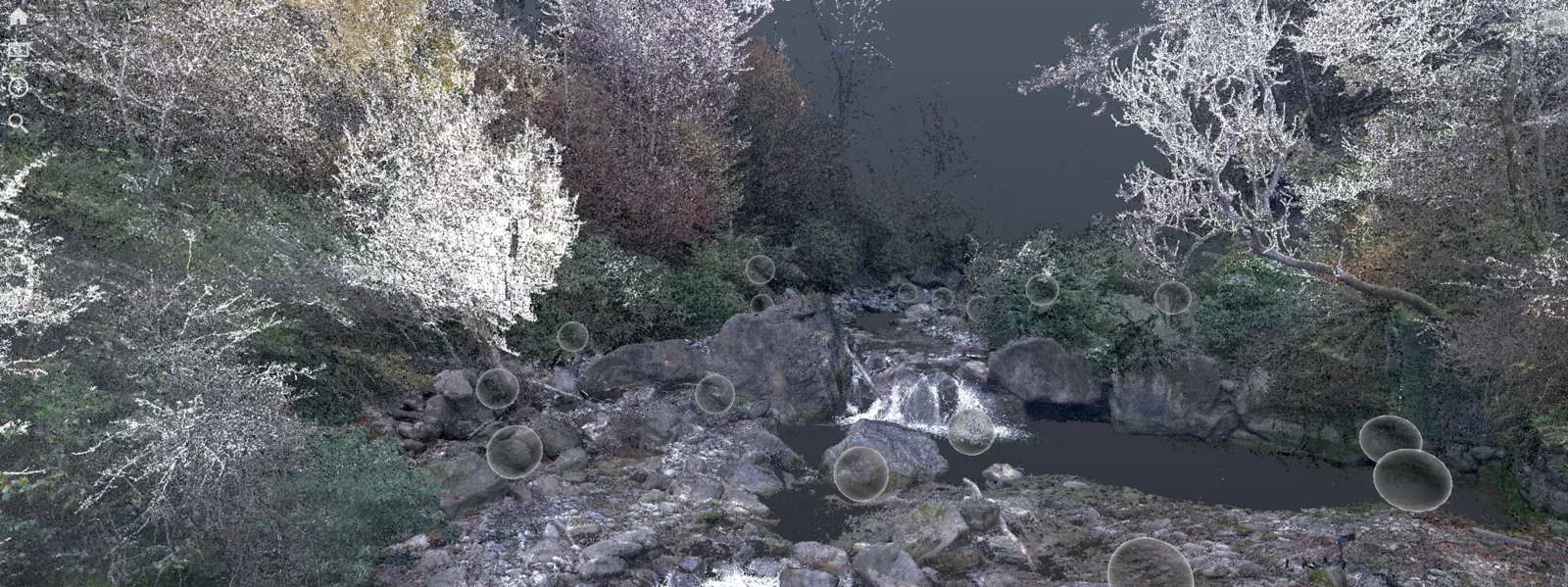

Check out some of our Point clouds:
